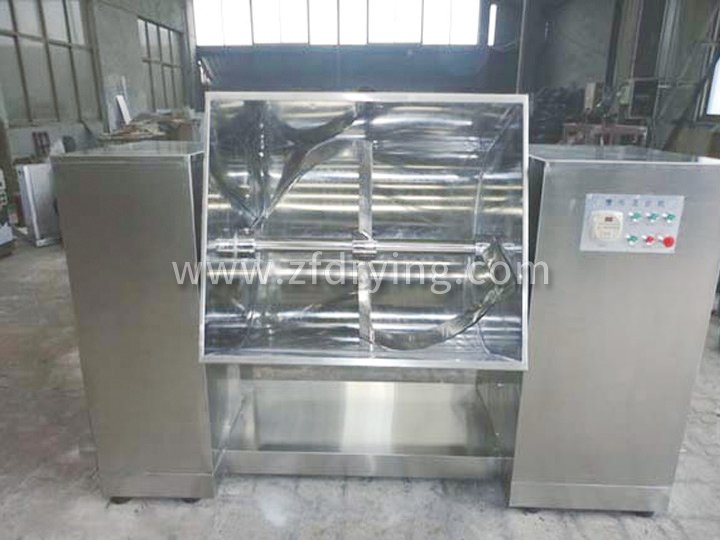

CH series slot mixer

Product Introduction

Used for mixing powdered or wet materials to ensure uniform mixing of different proportions of main and auxiliary materials.

Performance characteristics

The contact between this machine and materials is made of stainless steel, with small clearance between the blades and the barrel body, and no dead corners when mixing. There are sealing devices at both ends of the mixing shaft to prevent material leakage.

Adapt to materials

Widely applicable to industries such as pharmaceuticals, chemicals, and food.

Technical specifications

capacity（L）	100	150	200	400
power（kw）	2.2	3	3	5.5
stirring speed（rpm）	24	24	24	24
Pouring angle（×）	105	105	105	105
weight（kg）	350	500	650	1200
External dimensions（mm）	1400×500×1000	1600×600×1100	1800×700×1200	2000×820×1460
