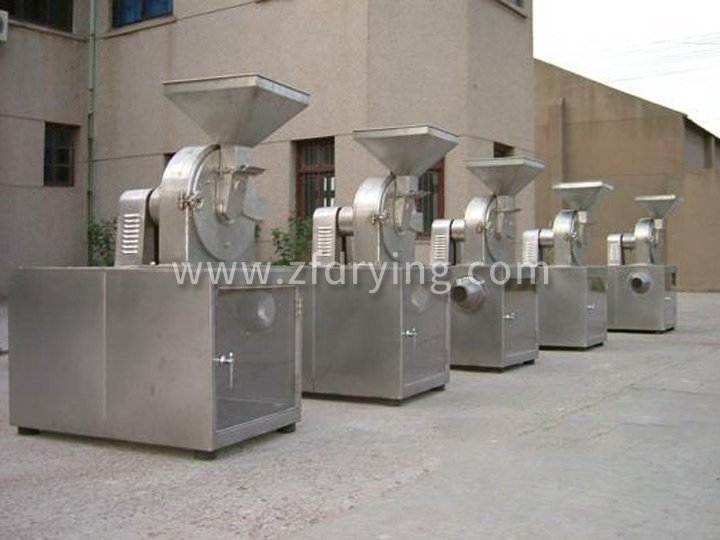

30B series universal and efficient crusher (set)

Features and Uses

This machine (set) is suitable for crushing brittle materials in industries such as pharmaceuticals, chemicals, food, pesticides, etc. It is a new generation of crushing equipment that integrates crushing and dust collection, and has extremely wide applications.

Structure and Principle

This unit utilizes the relative motion between the movable and fixed toothed discs to cause the materials to undergo tooth impact, friction, and interaction with each other; Impact and obtain crushing. The crushed material automatically enters the predation bag under the action of rotating centrifugal force, and the dust is filtered and recycled by the vacuum box through a cloth bag. This machine is designed according to the "GMP" standard and is made entirely of stainless steel material, with no dust flying during the production process. And it can improve the utilization rate of materials and reduce enterprise costs.

Technical specifications

model	unit	20B/20B set	30B/30B set	40B/40B set	60B/60B set
production capacity	kg/h	60-150	100-300	160-800	500-1500
Spindle speed	r/min	4500	3800	3400	2800
Feed particle size	mm	6	10	12	15
mesh	mesh	60-150	60-120	60-120	60-120
Crushing motor power	kw	4	5.5	11	15
Vacuum fan power	kw	1.5	1.5	1.5	2.2
weight	kg	250	320	550	680
Overall dimensions（L×W×H）	mm	550×600×1250	600×700×1450	800×900×1550	1000×900×1680
External dimensions (unit)（L×W×H）	mm	1100×600×1650	1200×650×1650	1350×700×1700	1550×1000×1750
