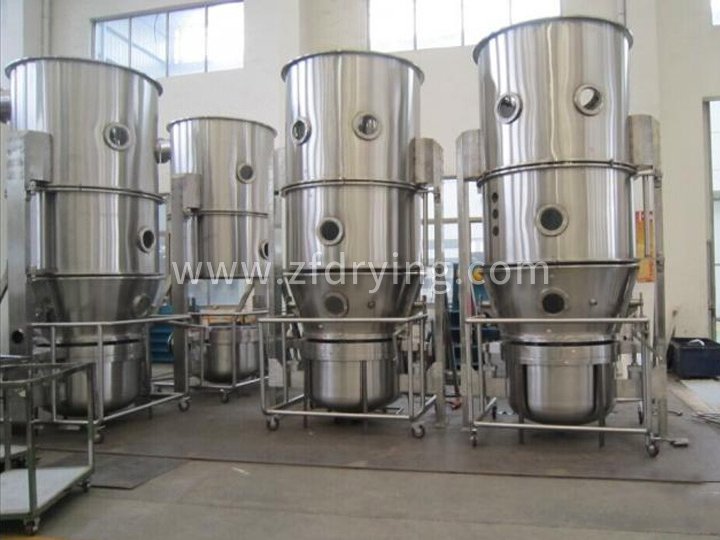

FL and FG series vertical boiling (granulation) dryers

Application area

Drug granulation and coating

Granulation: Tablet granules, granules, capsule granules.

Coating: granules, pill protective layer, color preparation, sustained release, film, enteric coating.

Food granulation and coating

Sugar, coffee, cocoa powder, cream, powdered fruit juice, amino acids, seasoning, puffed food.

Pesticides, pigment pigments, and dye granulation

Drying of powdery, granular, and block materials

Performance characteristics

By using powder granulation to improve flowability and reduce dust flying;

Improve its solubility through powder granulation;

Mixing granulation drying in one machine (one-step granulation);

Adopting anti-static filter materials, ensuring safe equipment operation;

The binder atomizer adopts a multi fluid spray gun, with uniform mist particles and greatly improved product qualification rate;

The equipment has no dead corners, and loading and unloading materials are light, fast, and washed clean.

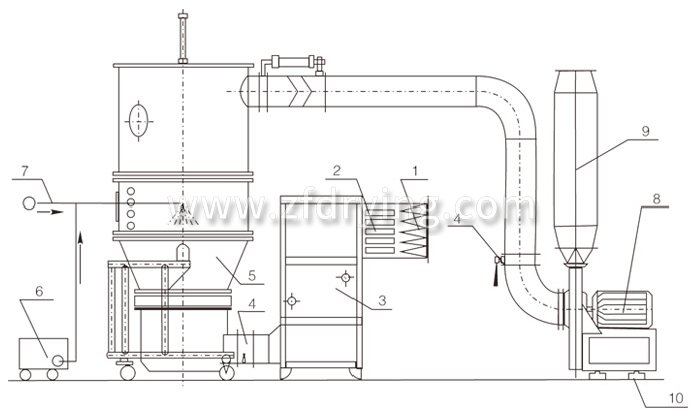

Structural diagram

1. Medium efficiency filter 2, sub high efficiency filter 3, heater 4, regulating valve 5, fluidized bed 6, infusion pump 7, compressed air 8, induced draft fan 9, muffler 10, shock absorber

Technical specifications

specifications	3	5	15	30	45	60	90	120	150	200	300	500
capacity	12	22	45	100	155	220	300	420	530	660	1000	1500
Processing capacity	1.5/4.5	4/6	10/20	15/45	25/65	40/80	60/120	80/160	90/200	100/300	150/450	300/300
fan power	2.2	3	4	5.5	7.5	11	15	18.5	18.5	22	30	37
Steam consumption	12	23	42	70	99	141	169	211	251	282	366	451
Compressed air consumption	0.3	1.3	0.3	0.4	0.4	0.6	0.6	0.9	0.9	0.9	1.3	1.5
noise	(Fan isolation installation) ≤ 75
Overall dimensions	1.0 ×0.55 ×1.8	1.2 ×0.6 ×2.1	1.25 ×0.9 ×2.1	1.6 ×0.9 ×2.3	1.65 ×1.1 ×2.4	1.85 ×1.25 ×3	1.85 ×1.25 ×3	2.2 ×1.65 ×3.1	2.27 ×1.72 ×3.1	2.34 ×1.9 ×3.5	2.8 ×1.9 ×3.8	3 ×2.55 ×4.2

Note: FG without granulation part
