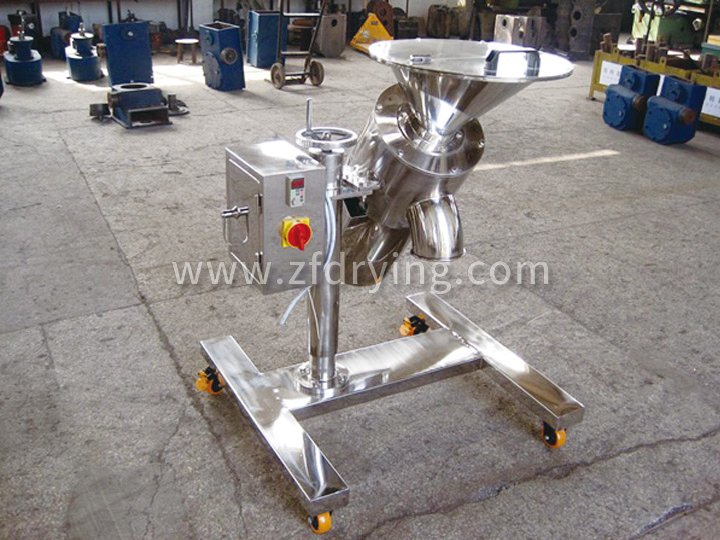

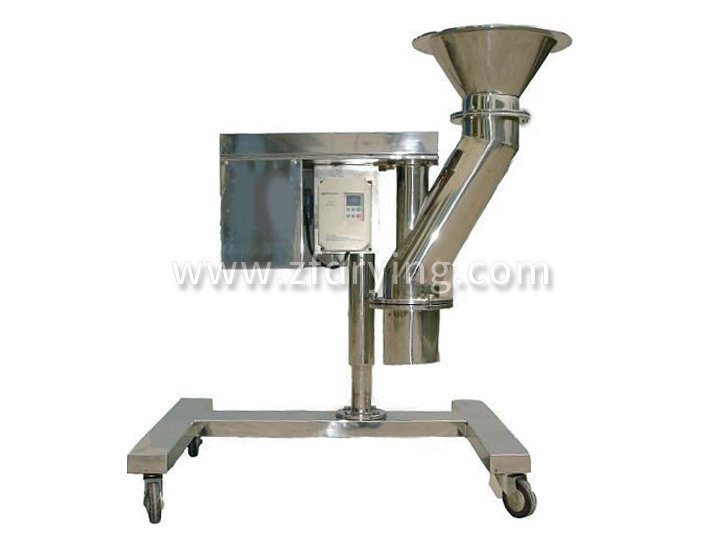

KZL series fast granulation (crushing) machine

Working principle

Low heat and dust during work.

The stator screen is made of stainless steel and is not easily damaged.

The gap between the crushing knife and the screen is adjustable.

Can handle sticky, gummy, hot, and moist materials.

Adapt to materials

Dry and wet particle homogenization, whole particle.

Crushing and granulation of agglomerated materials.

Wet material granulation.

Crushing of heat sensitive materials.

Technical specifications

model	unit	100	180	300
Stator diameter	mm	100	180	300
Stator length	mm	98	178	298
production capacity	kg/h	20-150	100-1500	200-2500
power	kw	1.1	1.5	3
speed	rmp	180-1400	180-1400	200-1400
