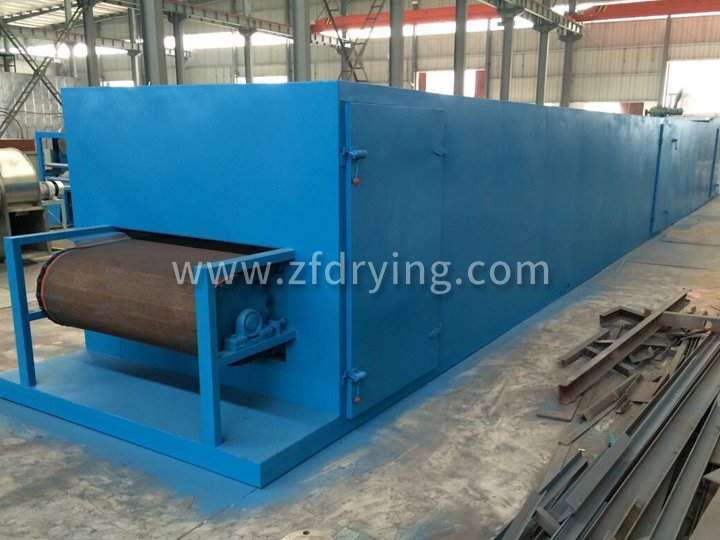

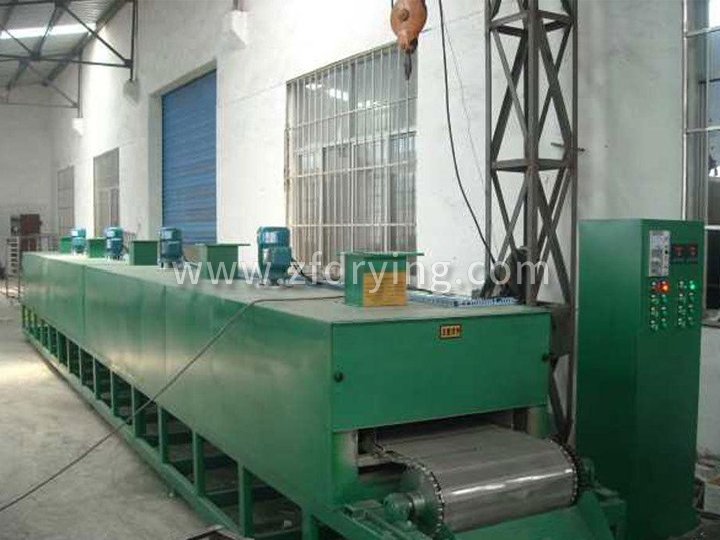

This machine is a continuous flow drying equipment used for drying sheet, strip, and granular materials with good breathability. It is particularly suitable for materials with high moisture content, such as dehydrated vegetables and traditional Chinese medicine slices, but not allowed to have high temperatures; This series of dryers has the advantages of fast drying speed, high evaporation intensity, and good product quality. For dehydrated filter cake like paste materials, they can also be dried after granulation or rod-shaped production.
model | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
Number of units | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
Bandwidth (m) | 1.2 | 1.6 | 2 | |||||
Drying section length (m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | |
Paving thickness (mm) | 10-80 | |||||||
Operating temperature (℃) | 50-140 | |||||||
Steam pressure (Mpa) | 0.2-0.8 | |||||||
Steam consumption (kg/h) | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 | |
Drying time (h) | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | |
Drying strength kg water/h | 60-160 | 80-200 | 85-220 | 100-260 | 100-260 | 120-300 | 240-600 | |
Total power of equipment (kW) | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 | |
long(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 | |
Overall dimensions | wide(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 |
height(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | |
Total weight kg | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 |
